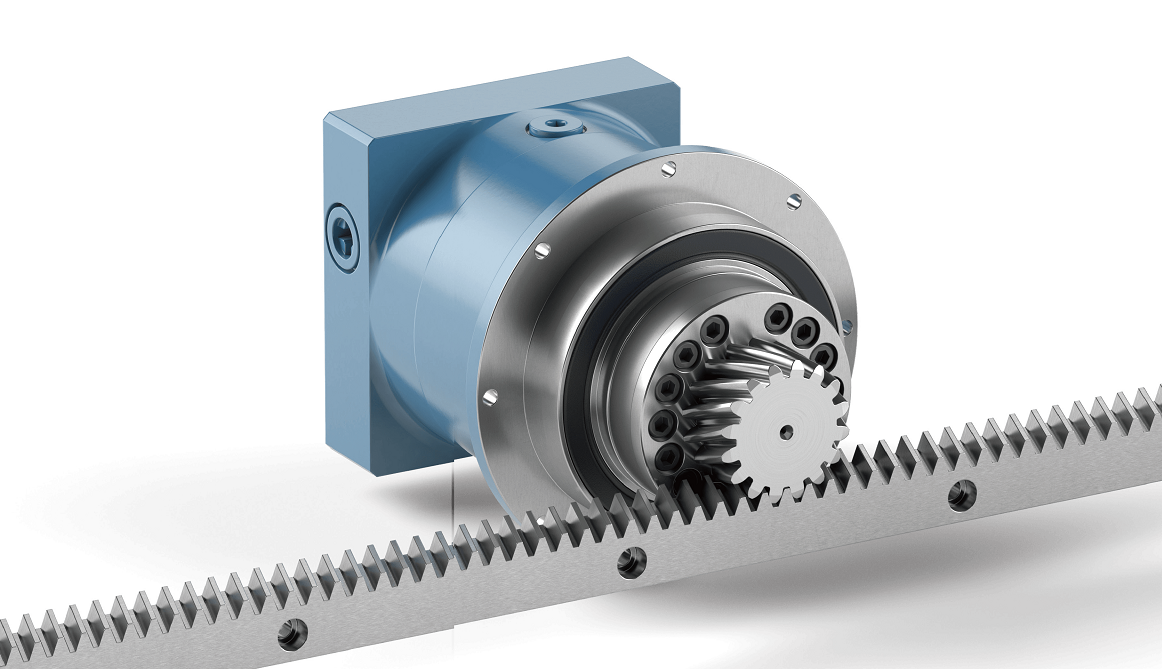

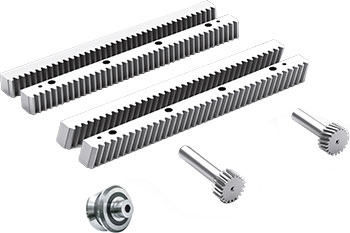

RACKS & PINION

Accuracy Grade: DIN 6h25, 8e27, 10e27
Material: S45C, SCM440
Tooth Type: Straight teeth, Helical teeth
Tooth Surface Treatment: Grinding, Precision milling
Hardness Treatment: Hardened, Tempered, or Untreated
Module: 1.5 – 10
Pressure Angle: 20°
Total Pitch Error: 0.036 mm / 1000 mm; 0.1 mm / 1000 mm; 0.2 mm / 1000 mm

Product Features

Wide Module Range

Module options- from 1.5 to 10
Multi-Precision Grades

Precision grades- from Q5 to Q10
Flexible Material Options

Various material and machining options available
Automation Integration Ready

Supports integrated automation solutions
Precision Transmission Performance

High precision and ideal transmission performance

Performance Parameter

Code					Module			L		Tooth No.		B		A0		A1		D			I			Hole No.		A		C1		C2			E		D1		I1		C3
CSTGH		010		05	1			499.51		159		15		15		14		-			-			-		-		-		-			-		-		-		-
CSTGH		015		05	1.5			499.51		106		19		19		17.5		62.44			124.88			4		8		7		11			7		29		440.5		5.7
CSTGH		015		10	1.5			999.03		212		19		19		17.5		62.44			124.88			8		8		7		11			7		29		941		5.7
CSTGH		020		05	2			502.65		80		24		24		22		62.83			125.66			4		8		7		11			7		31.3		440.1		5.7
CSTGH		020		10	2			1005.31		160		24		24		22		62.83			125.66			8		8		7		11			7		31.3		942.7		5.7
CSTGH		030		05	3			508.94		54		29		29		26		63.62			127.23			4		9		10		15			9		34.4		440.1		7.7
CSTGH		030		10	3			1017.88		108		29		29		26		63.62			127.23			8		9		10		15			9		34.4		949.1		7.7
CSTGH		040		05	4			502.65		40		39		39		35		62.83			125.66			4		12		10		15			9		37.5		427.7		7.7
CSTGH		040		10	4			1005.31		80		39		39		35		62.83			125.66			8		12		10		15			9		37.5		930.3		7.7
CSTGH		050		05	5			502.65		32		49		39		34		62.83			125.66			4		12		14		20			13		30.1		442.4		11.7
CSTGH		050		10	5			1005.31		64		49		39		34		62.83			125.66			8		12		14		20			13		30.1		945		11.7
CSTGH		060		05	6			508.94		27		59		49		43		63.62			127.23			4		16		18		26			17		31.4		446.1		15.7
CSTGH		060		10	6			1017.88		54		59		49		43		63.62			127.23			8		16		18		26			17		31.4		955.0		15.7
CSTGH		080		05	8			502.65		20		79		79		71		62.83			125.66			4		25		22		33			21		26.6		449.5		19.7
CSTGH		080		10	8			1005.31		40		79		79		71		62.83			125.66			8		25		22		33			21		26.6		952		19.7
CSTGH		100		10	10			1005.31		32		99		99		89		62.83			125.66			8		32		33		48			32		125.7		753.96		19.7
CSTGH		120		12	12			1017.90		27		120		120		108		63.6			127.23			8		40		39		58			38		127.23		763.4		19.7

Specifications:

Accuracy Grade: DIN 6h25

Material: C45 (Medium Carbon Steel, equivalent to S45C)

Tooth Type: Straight

Tooth Surface Treatment: Ground

Hardening Treatment: High-frequency induction hardened, HRC 48–52

Four-Side Ground: Yes

Pressure Angle: 20°

Total Pitch Error: 0.036 mm / 1000 mm

Performance Parameter

Code						Module	L				Tooth No.		B		A0		A1		D				I			孔数 Hole No.		A			C1		C2		E		D1		I1
CSTMQ			010		05	1	499.51				159		15		15		14		-				-			-		-			-		-		-		-		-
CSTMQ			015		05	1.5	499.51				106		19		19		17.5		62.44				124.88			4		8			7		11		7		29		441.5
CSTMQ			015		10	1.5	999.03				212		19		19		17.5		62.44				124.88			8		8			7		11		7		29		941
CSTMQ			020		05	2	502.65				80		24		24		22		62.83				125.66			4		8			7		11		7		31.3		440.1
CSTMQ			020		10	2	1005.31				160		24		24		22		62.83				125.66			8		8			7		11		7		31.3		942.7
CSTMQ			030		05	3	508.94				54		29		29		26		63.62				127.23			4		9			10		15		9		34.4		440.1
CSTMQ			030		10	3	1017.88				108		29		29		26		63.62				127.23			8		9			10		15		9		34.4		949.1
CSTMQ			040		05	4	502.65				40		39		39		35		62.83				125.66			4		12			10		15		9		37.5		427.7
CSTMQ			040		10	4	1005.31				80		39		39		35		62.83				125.66			8		12			10		15		9		37.5		930.3
CSTMQ			050		05	5	502.65				32		49		39		34		62.83				125.66			4		12			14		20		13		30.1		442.4
CSTMQ			050		10	5	1005.31				64		49		39		34		62.83				125.66			8		12			14		20		13		30.1		945.0
CSTMQ			060		05	6	508.94				27		59		49		43		63.62				127.23			4		16			18		26		17		31.4		446.1
CSTMQ			060		10	6	1017.88				54		59		49		43		63.62				127.23			8		16			18		26		17		31.4		955.0
CSTMQ			080		05	8	502.65				20		79		79		71		62.83				125.66			4		25			22		33		21		26.6		449.5
CSTMQ			080		10	8	1005.31				40		79		79		71		62.83				125.66			8		25			22		33		21		26.6		952
CSTMQ			100		10	10	1005.31				32		99		99		89		62.83				125.66			8		32			33		48		32		125.7		753.96

Specifications:

Accuracy Grade: DIN 8e27

Material: S45C

Tooth Type: Straight

Tooth Surface Treatment: Precision milled

Hardening Treatment: HRC 18–20

Four-Side Ground: No

Pressure Angle: 20°

Total Pitch Error: 0.1 mm / 1000 mm

New

WANSHSIN Racks, Pinions & Rollers Catalog
