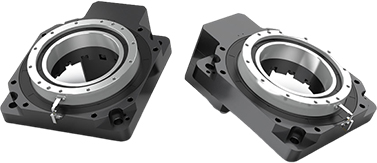

WTN

Cross Bearing Design:High load capacity with rotational precision - face runout batch-controlled within 0.015mm
Helical Gear Optimization:High-strength tooth profile ensures perfect meshing and low-noise operation
Precision Ground Gears:Adjustable backlash <0.5 arc-min | Minimal heat generation | Smooth running
Monolithic Input Shaft:Eliminates slippage and shaft breakage risks

Product Features

Cross Bearing Design

High load capacity with precision rotation - batch-controlled face runout ≤0.015mm
Integrated Input Gear Design

Eliminates slippage and shaft fracture
High-Tooth Helical Gear Design

Ensures superior strength, optimal contact ratio and low-noise operation
Precision Gear Grinding Technology

Adjustable backlash <0.5 arc-min | Reduced heat generation | Smooth operation

Performance Parameter

Specifications	Unit	WTN060	WTN085	WTN110	WTN130	WTN200	WTN280	WTN350	WTN450
Applicable motor models		42 stepper motor	57 stepper motor	57 stepper motor	57 stepper motor	86 stepper motor	110/130 stepper motor	130 stepper motor	130 stepper motor
Applicable motor models		42 stepper motor	57 stepper motor	57 stepper motor	57 stepper motor	86 stepper motor	110/130 stepper motor	130 stepper motor	130 stepper motor
Ratio		5,10,18	5,10	10	10, 18	10,18	10	10,18	10
Rated output torque	N ·m	5.2 ,4.6 ,1.2	12,10	40	32,20	70,70	280	320,260	400
Noise	dB	65	65	65	65	67	71	73	75
Weight	Kg	0.6	1.2	2.2	2.8	9.6	18	25.5	49
