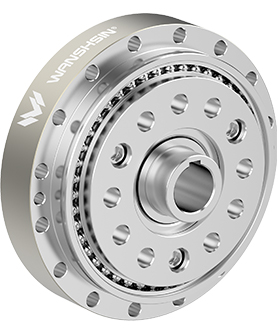

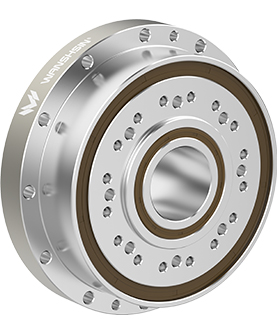

WF4CF-DA Series

Product Features

Compact structure

Optimizes space utilization without compromising efficiency
High rigidity

Maintains stability and accuracy even under heavy loads.
Smooth operation

Reduces noise and vibration for a quieter working environment.
Excellent positioning and rotational accuracy

Ensures precise movement for complex and demanding processes.

Performance Parameter

WF4CF-DA Data sheet
Modol	Ratio	Rated load N.m	Rated speed r/min	Backlash arcmin	Positioning Accuracy arcmin	Lifespan hour	Product rigidity Nm/arcmin	Instantaneous max speed r/min	Acceleration/Braking torque N.m	Max. overturning moment N.m	Instantaneous max torque N.m	Maximum axil force N


DA025	41	245	1750	P0-P2	1.5	8000	49	3000	515	1764	1102.5	3920
	59
	89
	119
DA045	29	460	1750	P0-P2	1.5	8000	108	3000	1158	3332	2070	5194
	41
	59
	89
	119
DA080	29	835	1750	P0-P2	1.5	8000	196	3000	2505	4312	3757.5	7840
	41
	59
	89
	119
DA100	41	1000	1750	P0-P2	1.5	8000	258	3500	2550	4500	3950	8000
	59
	89
	119
DA125	29	1225	1750	P0-P2	1.5	8000	325	3500	3062	4500	4125	8000
	41
	59
	89
	119
DA165	41	1615	1750	P0-P2	1.5	8000	392	3000	4043	7840	7267.5	14700
	59
	89
	119
*The backlash P0-P2 corresponds to P0≤0.8arcmin，P1≤1.5arcmin，P2≤2arcmin
