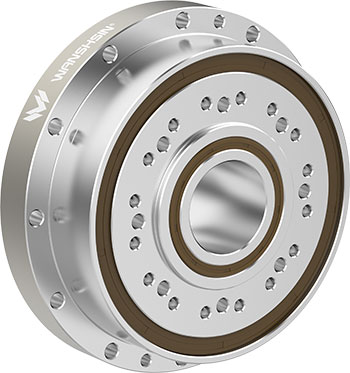

WF4CF-C Series

Product Features

Compact structure

Saves installation space while maintaining strong performance
High rigidity

Resists deformation under heavy loads for reliable operation
Hollow shaft design

Allows easy integration with shafts or cables for versatile applications
Excellent positioning and rotational accuracy

Provides precise motion control for high-precision tasks.

Performance Parameter

WF4CF-C Data sheet
Modol	Ratio	Rated load N.m	Rated speed r/min	Backlash arcmin	Positioning Accuracy arcmin	Lifespan hour	Product rigidity Nm/arcmin	Instantaneous max speed r/min	Acceleration/Braking torque N.m	Max. overturning moment N.m	Instantaneous max torque N.m	Maximum axil force N


C020	59	207	1750	P0-P2	1.5	8000	49	3000	515	1764	1102.5	3920
	89
	119
C040	59	396	1750	P0-P2	1.5	8000	108	3000	1158	3332	2070	5194
	89
	119
C080	59	754	1750	P0-P2	1.5	8000	196	3000	2505	4312	3757.5	7840
	89
	119
C125	59	1275	1750	P0-P2	1.5	8000	196	3000	2083	4312	6300	7840
	89
	119
C200	59	2055	1750	P0-P2	1.5	8000	200	3000	4110	14112	9247.5	14700
	89
	119
C380	59	3713	1750	P0-P2	1.5	8000	980	3000	7963	17640	16177.5	19600
	89
	119
*The backlash P0-P2 corresponds to P0≤0.8arcmin，P1≤1.5arcmin，P2≤2arcmin
