| Type | Permanent Magnet Direct Motor |
| Rated Voltage (V) | 220V |
| Power (W) | 150~700 |
| Air Volume (m³/h) | 5000 ~9800 |
| Rated Speed (RPM) | 72~120 |
| Coverage Area(㎡) | 200~900 |
| Speed Range (RPM) | 0~120 |
| Motor Working Mode (/) | S1 |
| Size (m) | 2.4m~ 5.5m |
| Number | Name | Model | Diameter | Blades | Weight | Voltage | Frequency | Current | Power | Max.Speed | Max. Volume | Coverage |
| MM | PCS | KG | V | Hz | A | KW | RPM | m³/min | m² | |||

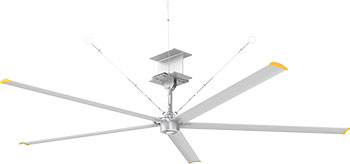

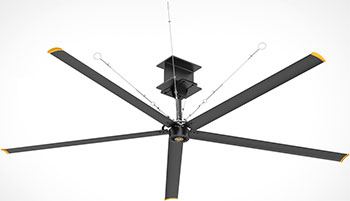

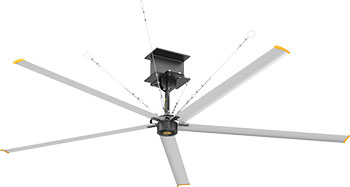

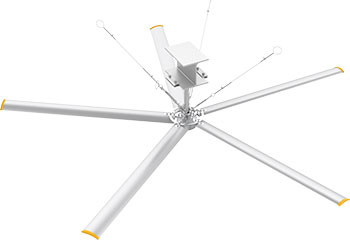

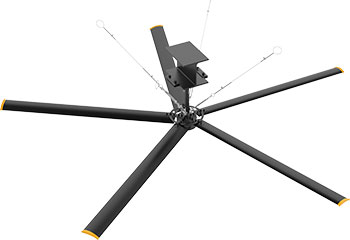

| 3 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM55 | 5500 | 5 | 80.0 | 220.0 | 60/50 | 2.2 | 0.70 | 10-72 | 10500.0 | 1000 |
| 4 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM50 | 5000 | 5 | 75.0 | 220.0 | 60/50 | 2.0 | 0.60 | 10-75 | 9800.0 | 900 |
| 5 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM42 | 4200 | 5 | 65.0 | 220.0 | 60/50 | 1.9 | 0.45 | 10-90 | 8500.0 | 760 |
| 6 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM38 | 3800 | 5 | 55.0 | 220.0 | 60/50 | 1.8 | 0.35 | 10-100 | 8000.0 | 720 |
| 7 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM30 | 3000 | 5 | 35.0 | 220.0 | 60/50 | 1.0 | 0.20 | 10-100 | 6000.0 | 600 |
| 8 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM24 | 2400 | 5 | 32.0 | 220.0 | 60/50 | 0.9 | 0.15 | 10-120 | 5000.0 | 500 |
Industrial scenes：factory workshops, warehouses, logistics parks, machining workshops.
Commercial scenes：shopping malls, 4S stores, exhibitions, churches, open-air bars.
Public facilities：auditoriums, station platforms, waiting rooms.
Permanent magnet brushless direct drive motor
Permanent magnet brushless direct drive motor: high efficiency and energy saving: 30%~50% energy saving compared to traditional asynchronous motors.
High temperature resistant design：never demagnetized; stable operation.
Safety protection：overvoltage, phase loss, overcurrent protection, IP65 protection level.
Fan blade design：fluid simulation optimization, with high air volume and energy efficiency;
Unlimited life design：durable product; safe structure, ensuring the safety of product use;
Mechanical safety：steel wire traction rope system + ring plate + auxiliary plug-in, the overall structure is stable. The shaft sleeve installation is integrated with the square steel to prevent loosening.
Electrical safety：the control system has triple protection (overvoltage, phase loss, overcurrent). The labyrinth heat dissipation design reduces the internal temperature of the motor.
Bench test: covers all items such as input and output power, energy efficiency, torque, temperature rise, noise, air volume, etc.
Hoisting experiment: verify long-term suspension stability.
Self-use verification: wanshsin factory takes the lead in using its own products to ensure reliability.
Overload test: wanshsin factory conducts long-term overload operation to test various performance and safety of products;
