| Type | Permanent Magnet Direct Drive Motor； |
| Rated Voltage (V) | 220V/380V |
| Power (W) | 1000~1200 |
| Maximum Air Volume (m³/h) | 14950 |
| Maximum Coverage Area(㎡) | 1800 |
| Rated Speed (RPM) | 55~60 |
| Speed Range (RPM) | 0~60 |
| Motor Working Mode (/) | S1 |
| Size (m) | 7.3m~6.1m |
| Number | Name | Model | Diameter | Blades | Weight | Voltage | Frequency | Current | Power | Max.Speed | Max. Volume | Coverage |
| MM | PCS | KG | V | Hz | A | KW | RPM | m³/min | m² | |||

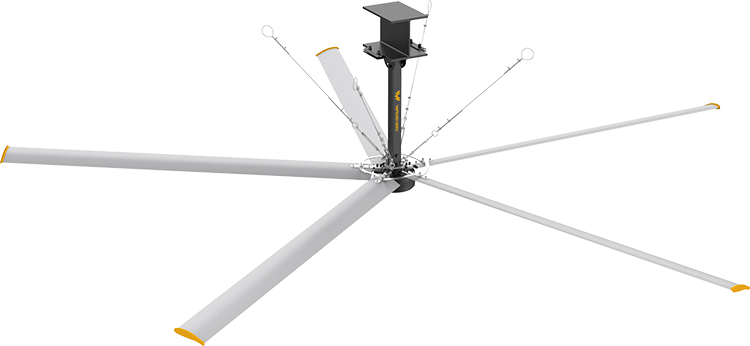

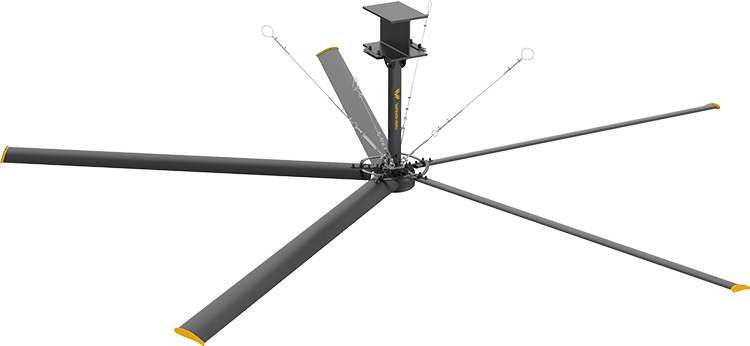

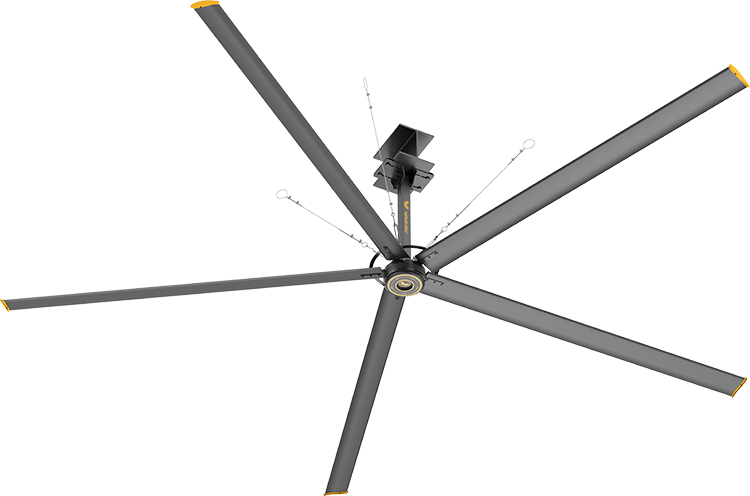

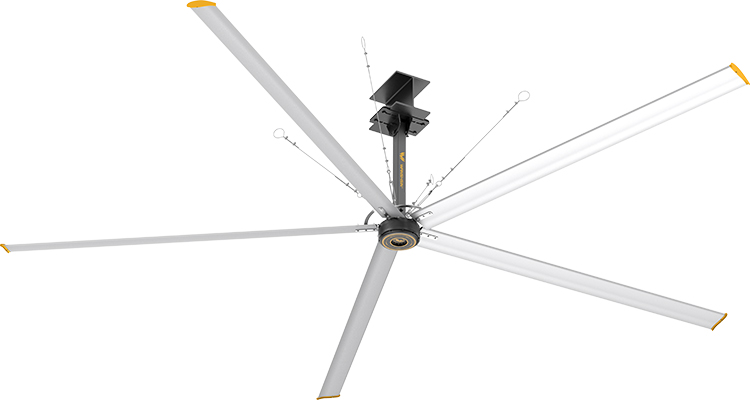

| 1 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM73 | 7300 | 5 | 100 | 380/ 220 | 60/50 | 2.6/4.5 | 1.20 | 10-55 | 14950 | 1500 (Theory 1800 ) |
| 2 | HVLS Ceiling Fan-High Air Volume Model | WF5OPM61 | 6100 | 5 | 95 | 380/ 220 | 60/50 | 2.2/3.8 | 1.00 | 10-60 | 12000 | 1200 |
Industrial scenes: factory workshops, warehouses, logistics parks, machining workshops.
Commercial scenes: shopping malls, 4S stores, exhibitions, churches, open-air bars.auditoriums, station platforms, waiting rooms.

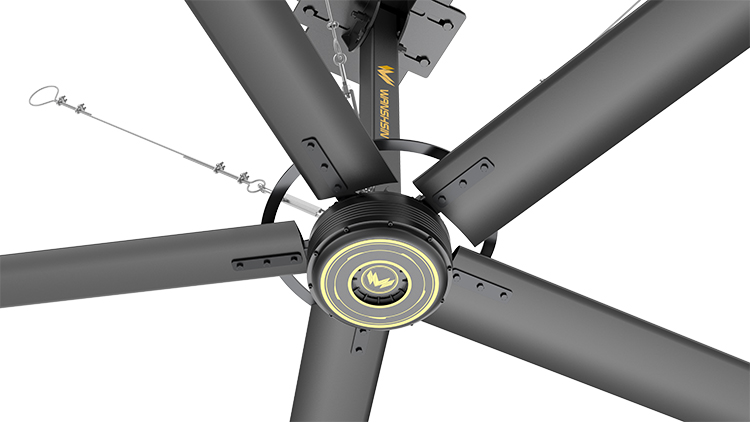

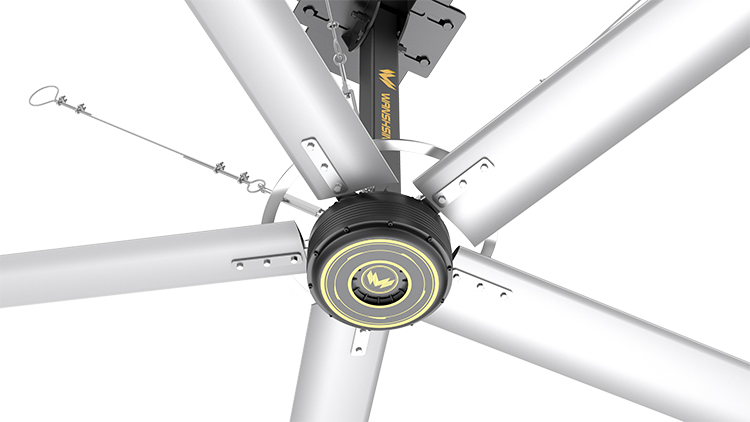

Permanent magnet brushless direct drive motor
High efficiency and energy saving: 30%~50% energy saving compared to traditional asynchronous motors.
High temperature resistant design: never demagnetized; stable operation.
Safety protection: overvoltage, phase loss, overcurrent protection, IP55 protection level.
Fan blade design: fluid simulation optimization, with high air volume and energy efficiency;
Unlimited life design: durable product; safe structure, ensuring the safety of product use;
Mechanical safety: steel wire traction rope system + ring plate + auxiliary plug-in, the overall structure is stable. The shaft sleeve installation is integrated with the square steel to prevent loosening.
Electrical safety: the control system has triple protection (overvoltage, phase loss, overcurrent). The labyrinth heat dissipation design reduces the internal temperature of the motor.
Bench test: covers all items such as input and output power, energy efficiency, torque, temperature rise, noise, air volume, etc.
Hoisting experiment: verify long-term suspension stability.
Self-use verification: WANSHSIN factory takes the lead in using its own products to ensure reliability.
Overload test: WANSHSIN factory conducts long-term overload operation to test various performance and safety of products;
