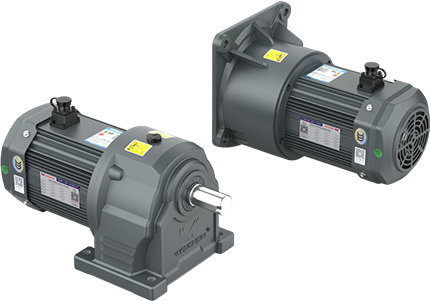

GH/GV Series Permanent Magnet Gear Motor

Strong load-bearing, using high-strength die-casting aluminum alloy shell and carburized hardness HRC62 gears.
High energy-efficiency level, energy saving, low temperature rise.
Low noise, small size.
Maintenance-free, the reducer is lubricated with grease.
Wide range of applications, a variety of models and mounting methods are widely used in most industries.
Large torque, multiple speed ratios, wide power range.

Power	0.2-7.5kW
Voltage	Single-phase 110V, 220V; three-phase 220V, 380V, 415V, 440V (Support customization)
Frequency	50/60Hz
Motor Energy Efficiency	IE4，IE5
Motor Rated Speed	1500RPM
Insulation Class	F (155℃)
Ingress Protection	Standard IP55
Frequency inverter	Permanent Magnet Specialized Frequency Inverter

产品特点

IE4,IE5

High efficiency, low energy consumption
Permanent magnet synchronous motor

Small size, light weight, low temperature rise
3

High energy saving
High versatility

Wide range of ratios and power
Gear material 40CrMo+ carburizing

Load carrying capacity, low noise, long service life

New

AC Gear Motor Catalog.
