CBR600 Series Braking Unit

The CBR600 series brake unit is mainly used in situations with large inertia loads, four-quadrant loads, fast shutdowns, and long-term energy feedback.
When the drive brakes, due to the mechanical inertia of the load, the kinetic energy will be converted into electrical energy during braking and fed back to the drive, causing the drive DC bus voltage to rise.
The energy-consuming brake unit can convert excess electrical energy into resistor heat energy consumption to prevent excessive bus voltage from damaging the drive.
The CBR600 series brake unit has functions such as overcurrent, overvoltage, overtemperature, and brake resistor short-circuit protection.
With the parameter setting function, users can set the braking start and stop voltages; they can also achieve the needs of high-power drive braking through master-slave parallel operation.

Product Features

1

Voltage level: AC380V and AC690V
2

Support LED and LCD display, flexible parameter setting
3

IP21 protection level
4

Power range: 37KW to 800KW

Performance Parameter

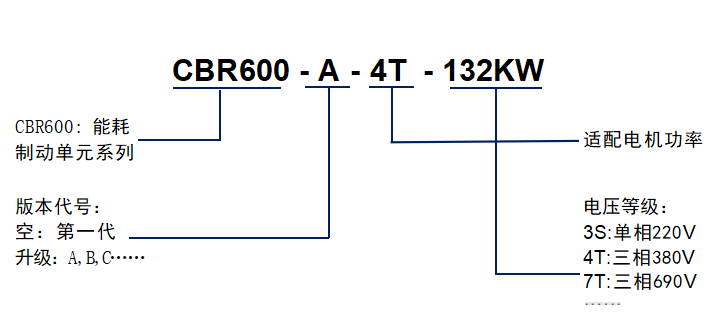

Indication for model selection		CBR600-A-4T-132KW
ITEM	NO.	DESCRIPTION
Product Series Name	①	CBR600: Braking Unit Series
Version code	②	Null: First generation, Upgrade: A, B, C…
Voltage Level	③	3S: Single-phase 220V, 4T: Three-phase 380V, 7T: Three-phase 690V
Adaptable motor power	④
